PSC Arkimede Raised Floor System for Tile Stone Slab Surfaces

This is a raised flooring system requiring multiple units dependent on the number of tile/slab sections to support.

If you are raising your floor more than 1-3/8" (30mm) to 2-3/8" (60mm), you will need a combination of additional easy extensions.

Please see other accessories to create a complete installation system.

Make elevating hard surfaces a cinch without breaking the bank

• Depending on the support head used, the PSC Arkimede system can elevate hard surface material or wood decks.
• The support heads for this listing are for tile/stone slabs with a 2mm (5/64") or 4mm (3/64") spacing.
• The installation system can be permanent or temporary.
• This system does not require adhesives or grout - moisture will escape through the created spacer lines.
• This system assumes that there is already suitable established drainage (if needed) below elevated floor.
• Adjustable - each support can be set to a different height to compensate for uneven substrate.
• For heights above 2-3/8" (60mm), use a combination of 1, 2 or 4 inch extensions in conjunction with the support head.
• Head support assemblies, base units and optional extensions universally lock one piece to the next with a simple twist.
• Raised floors and decks can be elevated or virtually any stable surface.
• Great for installing flat, traffic-friendly surfaces over sloped areas like a flat roof.

Raised hard surface flooring and decks are now in high demand. Other systems designed to tackle the installation have been either pricey, overly complicated or both. The PSC Arkimede raised flooring system dramatically simplifies the task of elevating hard-surface stone or tile slabs from 1-3/8" (30mm) up to 22" (560mm) above the supporting surface. The proper height can be easily achieved by using the appropriate combination of the adjustable support head in conjunction with three different sizes of extensions (photos below show a few of the numerous possibilities.) The substrate can be uneven and can be virtually any stable surface. Depending upon strength requirements of your flooring structure, additional support units can be situated between the joint supports. The PSC Arkimede raised flooring system makes it easy to create a perfectly level hard surface or deck at the height you want (between 1-3/8" (35mm) and 22" (560mm) elevation.)

Numbered Photos below offer the following configuration examples:

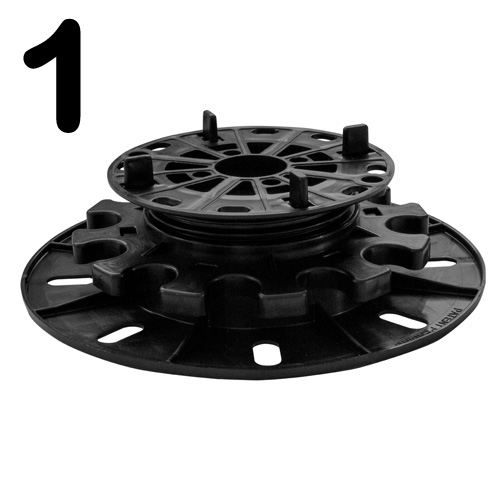

1. Head Assembly only - Support head, Threaded Adjustment Ring and Base allow adjustable height from 1-3/8" (35mm) to 2-3/8" (60mm)
2. Head Assembly plus one 25mm spacer - Combination allows adjustable height from 2-3/8" (60mm) to 3-3/8" (85mm)
3. Head Assembly plus one 50mm spacer - Combination allows adjustable height from 3-3/8" (85mm) to 4-3/8" (110mm)
4. Head Assembly plus one 100mm spacer - Combination allows adjustable height from 5-3/8" (135mm) to 6-3/8" (160mm)
5. Head Assembly plus one 25mm and one 50mm spacer - Combination allows adjustable height from 4-3/8" (110mm) to 5-3/8" (135mm)
6. Max Height Setup - Head Assembly plus five 100mm spacers- Combination allows adjustable height from 21" (535mm) to 22" (560mm)

There are numerous other combinations possible to achieve the height range you require.
