PSC Trench or Driveway Trough Linear Drains

PSC Trench or Driveway Trough Linear Drains by Pro-Source Center

This product has been replaced by the following product:

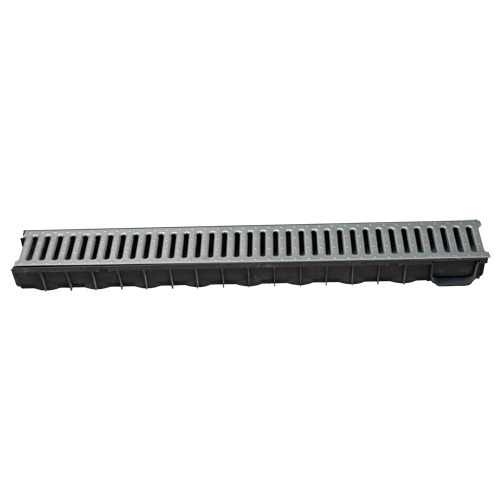

PSC Midi 40in Trench Linear Drain Channel System

PSC Midi Trench 40in Linear Drain Channel and Galvanized Steel Grate Can add outlet/cap accessories

Built for Residential and non-residential to help control surface water:

  • Can handle pedestrian and light vehicle traffic
  • Fast and easy to install.
  • Made from PP Polypropylene
  • Design allows continuous linear or 90 degree connections
  • Side and bottom outlet options
View Replacement Product Details

PSC CH-900 Trench / Driveway Channel Trough Linear Drains Total Length 40"

Built for Residential and non-residential where surface water control is desirable:

  • Including foot & cycle traffic
  • Driveway installations
  • Fast and easy to install.
  • Compliant with EN 1433 A15 standards, can carry over 3000lbs.*

Channel does not come with the (optional) end-cap block or end-cap outlet plates - please refer to separate suggested listings for those parts

Built for Residential and non-residential including foot and cycle traffic as well as for driveway installations where surface water control is desirable. The PSC CH Exterior drains are fast and easy to install. Compliant with EN 1433 A15 standards these linear channels can carry over 3000lbs.*

PSC Trench and Driveways Drain Instructions

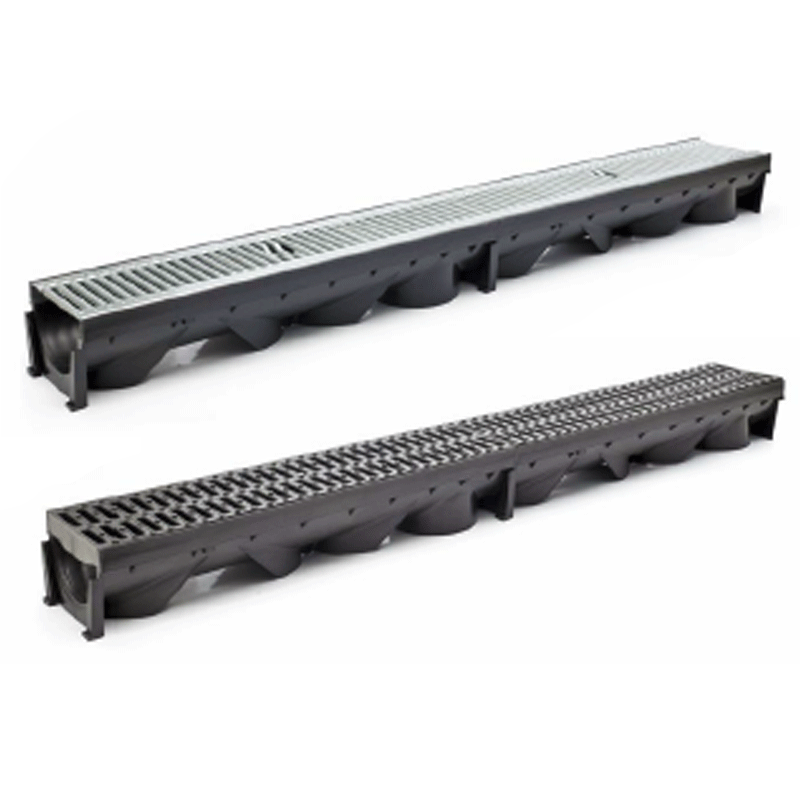

  • CH-900-M - two piece plastic grate rated for 660lbs
  • CH-900 - single piece zinc coated grate carries over 3000lbs
Both:
  • UV-stabilized Polypropylene
  • Channel comes in two 2' sections per channel.
  • Multiple channels will interlock one to the next
  • End-cap block and end-cap outlet parts are available but not included**
  • Channels have been designed to allow cutting bottom of channel for drainage outlet below

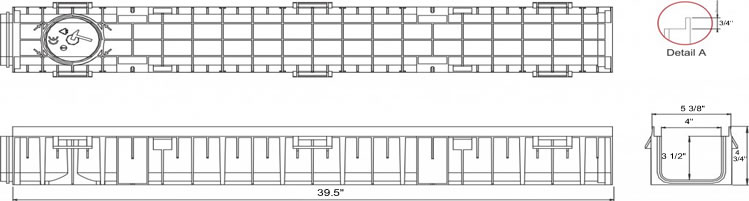

  • ~ 40" long 5" wide, 3 1/2" tall

*Zinc grate installed with 4" concrete back-fill.

**Please note that an end-cap block plate will only interface with one end of the channel while the end-cap outlet plate will only interface with the opposite end of the channel. Channel-to-channel interlocking follows the same requirements.
